Description
| Supported CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology |
|
| Chipset | Intel H610 | |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Form Factor | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
| Expansion Slots | ||
| PCI | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset:1 x PCIe 3.0 x1 Slot (PCIE2) |
|
| M.2 Socket | 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors |
|
| Memory | ||
| Type | Dual Channel DDR5 Memory Technology | |
| Slots | 2 x DDR5 DIMM Slots | |
| Supported Memory | 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600 12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800 Supports Intel Extreme Memory Profile (XMP) 3.0 |
|
| Maximum Memory | 96GB | |
| Graphics | ||
| Graphics | Intel Xe Graphics Architecture (Gen 12) 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 2x HDMI Port 2.1 | |
| USB (s) | 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6 x USB 2.0 (4 Rear, 2 Front) |
|
| LAN Port (s) | Gigabit LAN 10/100/1000 Mb/s Realtek 8111H |
|
| Supported Storage | Chipset: 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors |
|
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
| Internal I/O Ports | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x 24-pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports). Rear Panel I/O 1 x PS/2 Mouse/Keyboard Port 2 x HDMI Ports 2 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Others | ||
| Bundled Software | ASRock Motherboard Utility (A-Tuning) UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

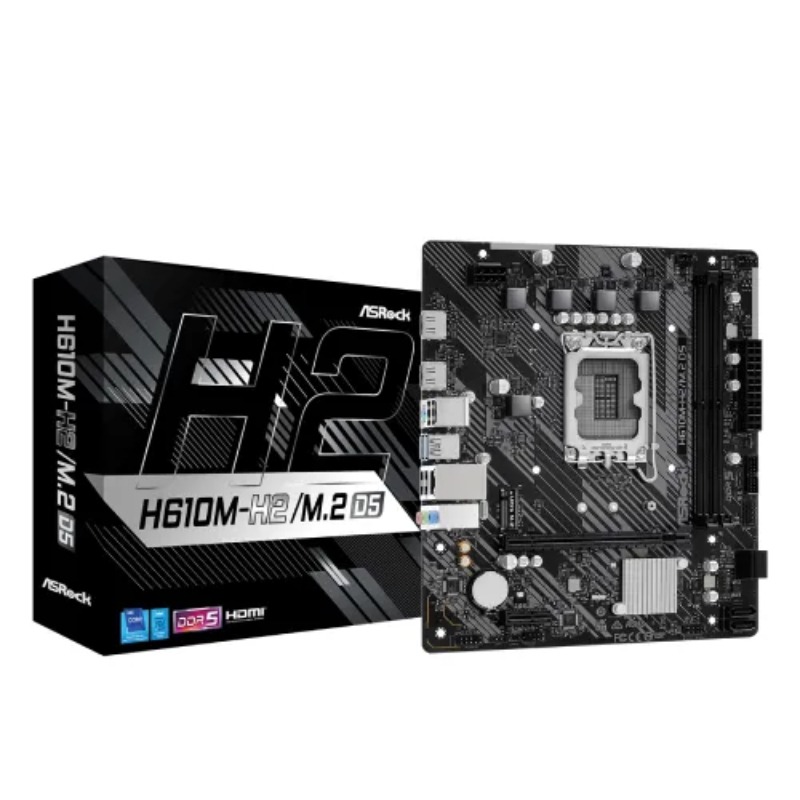

The ASRock H610M-H2/M.2 DDR5 motherboard is a compact and capable Micro-ATX solution designed to support Intel 14th, 13th, and 12th Gen Core processors using the LGA1700 socket. Built on the Intel H610 chipset, it offers a reliable foundation for gaming systems, productivity builds, and everyday computing setups.
Equipped with a 128Mb AMI UEFI BIOS featuring an intuitive graphical interface, the board ensures stable performance and easy system configuration. It supports dual-channel DDR5 memory across two DIMM slots, with capacity up to 96GB. Memory speeds reach up to 5600 MHz with 13th Gen processors and 4800 MHz with 12th Gen CPUs, along with Intel XMP 3.0 support for optimized performance tuning.
For graphics output, the motherboard leverages Intel’s integrated Xe Graphics architecture (Gen 12) and provides dual HDMI 2.1 ports capable of delivering 4K resolution at 60Hz, offering sharp and vibrant visuals for modern displays.
Storage and expansion options are flexible, featuring one Ultra M.2 slot (PCIe Gen3 x4, up to 32 Gb/s) and four SATA3 6.0 Gb/s connectors. Expansion is handled by one PCIe 4.0 x16 slot for graphics cards and one PCIe 3.0 x1 slot for additional add-in cards.
Networking is powered by Realtek Gigabit LAN (10/100/1000 Mb/s) for stable wired connectivity. The board includes four USB 3.2 Gen1 ports and six USB 2.0 ports, along with internal headers for system fans, front panel audio, and TPM support. Realtek ALC897 7.1-channel HD audio ensures immersive sound quality for entertainment and gaming.

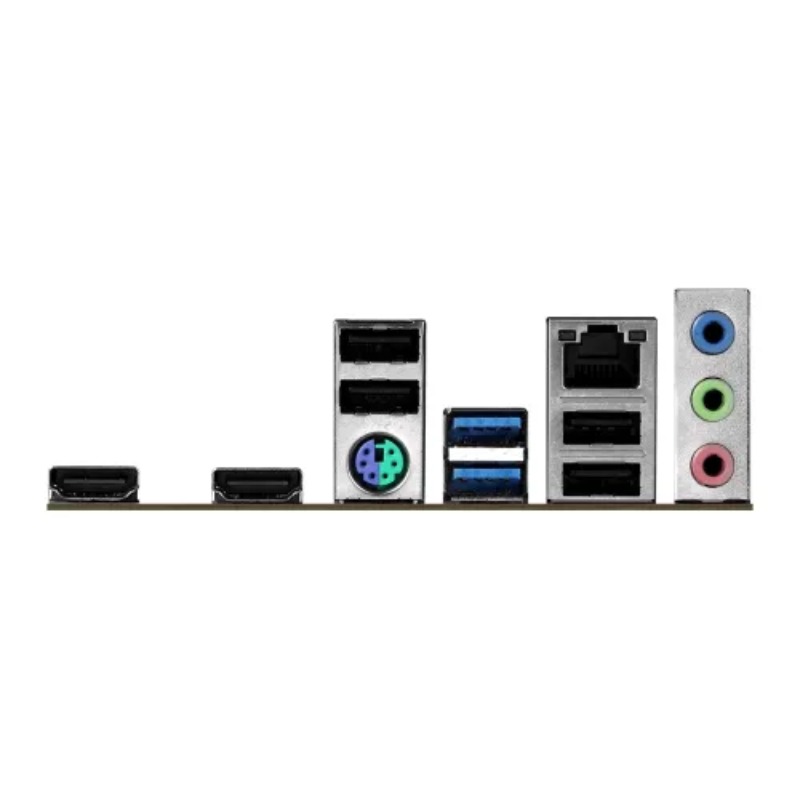

The rear I/O panel offers a PS/2 port, dual HDMI outputs, multiple USB ports, an RJ-45 LAN port, and HD audio jacks for comprehensive peripheral compatibility. Users also benefit from ASRock utilities such as A-Tuning, EZ Mode, Full HD UEFI, My Favorites, Auto Driver Installer, and Instant Flash, simplifying system optimization and BIOS updates.
Compact yet feature-rich, the ASRock H610M-H2/M.2 DDR5 motherboard delivers dependable performance, next-generation DDR5 memory support, and broad Intel CPU compatibility in a streamlined Micro-ATX design.
