Description
| Specification | Details |
|---|---|
| Model |
GA-H81M-H |
| Supported CPU | Intel LGA1150 processors:Core i7 / Core i5 / Core i3 / Pentium / CeleronL3 cache varies by CPU |
| Chipset | Intel H81 Express |
| BIOS | 1 × 32 Mbit Flash, licensed AMI EFI BIOSSupports PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Form Factor | Micro-ATX, 226 × 170 mm |
| Audio | Realtek ALC887 HD Audio CodecSupports 2/4/5.1/7.1 channels |
| Expansion Slots | 1 × PCIe x16 (runs at x16)2 × PCIe x1 |
| Memory Type | DDR3 |
| Memory Slots | 2 × DIMM, 1.5 V |
| Supported Memory | Dual-channel architectureDDR3 1600/1333 MHzNon-ECCSupports XMP profiles |
| Maximum Memory | 16 GB |
| Graphics | Integrated Intel HD GraphicsD-Sub: max 1920 × 1200HDMI 1.4a: max 4096 × 2160 @ 24 Hz / 2560 × 1600 @ 60 HzMax shared memory: 1 GB |

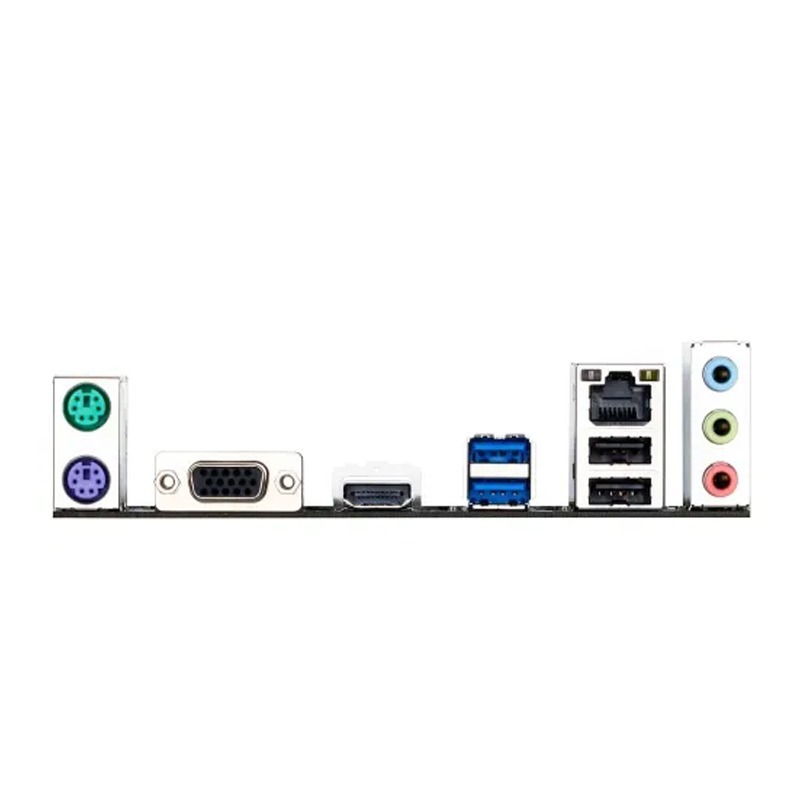

| Video Ports | 1 × HDMI1 × D-Sub |
| USB Ports | Rear Panel: 2 × USB 3.0/2.0, 2 × USB 2.0/1.1Internal Headers: 4 × USB 2.0/1.1 |
| LAN | Realtek GbE LAN (10/100/1000 Mbps) |
| Storage | 2 × SATA 6 Gb/s (SATA3 0/1)2 × SATA 3 Gb/s (SATA2 2/3) |
| Internal I/O Connectors | 1 × 24-pin ATX main power1 × 4-pin ATX 12V CPU power2 × SATA 6 Gb/s2 × SATA 3 Gb/s1 × CPU fan header1 × system fan header1 × front panel header1 × front panel audio header2 × USB 2.0/1.1 headers1 × Clear CMOS jumper |
| Special Features | Q-Flash, Xpress Install, APP Center (application availability may vary)@BIOS, EasyTune, EZ Setup, USB Blocker, Smart TimeLock, Smart Recovery 2, ON/OFF Charge support |
| Warranty | 3 Years Manufacturing Warranty |

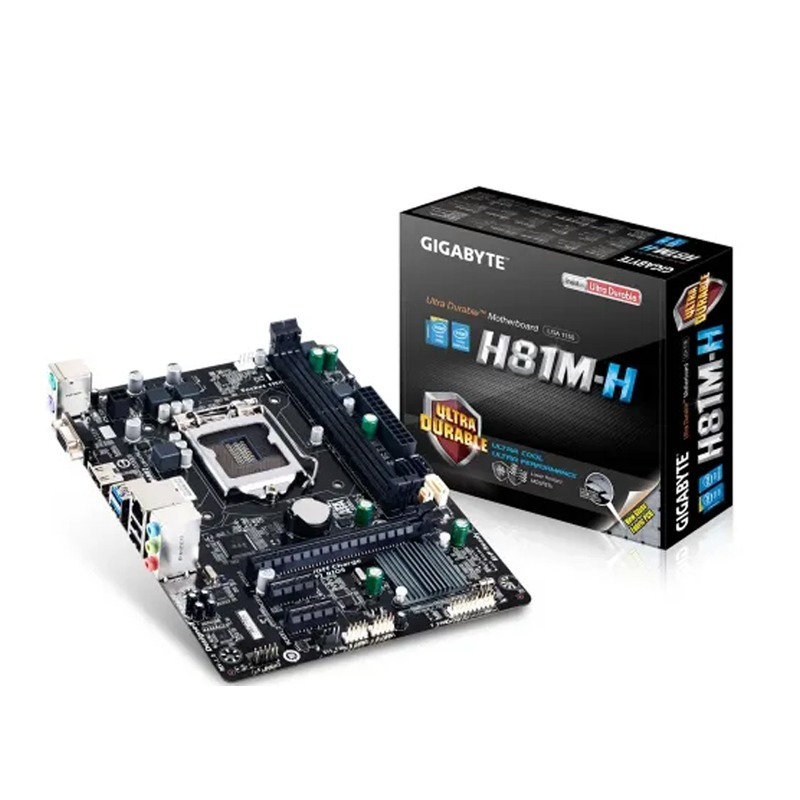

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard Description
The GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard is a reliable and feature-packed Micro-ATX motherboard designed for 4th Generation Intel Core processors. Built with GIGABYTE Ultra Durable Technology, it delivers stable performance and long-term reliability, making it ideal for home, office, or light gaming builds.
It features GIGABYTE UEFI BIOS for easy system configuration, USB 3.0 ports with 3x USB power for faster charging and data transfer, and GIGABYTE On/Off Charge, allowing convenient USB device charging even when the PC is powered off. The motherboard also offers HDMI and D-Sub ports for flexible display connectivity and high ESD protection on USB and LAN ports to safeguard your system.
Designed for durability, it uses solid capacitors for the CPU VRM, and provides additional protection features including Humidity Protection, Power Failure Protection, and Electrostatic Protection, ensuring resilience under various conditions.
The GIGABYTE GA-H81M-H also integrates smart utilities such as LAN Optimizer for network management, EasyTune for system optimization, and Smart Fan 2 for efficient thermal control. The GIGABYTE App Center provides easy access to GIGABYTE applications, while the BIOS app enables updates directly from Windows.
With its combination of performance, durability, and advanced features, the GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard is an excellent foundation for building a stable and versatile Intel-based PC.
