Description



Hardware Features

Interface:

• 1 × 10/100 Mbps LAN Port
• 1 × 10/100 Mbps LAN/WAN Port
• 1 × Nano SIM Card Slot
• 2 × External SMA-F Antenna Interfaces

Buttons:

• WPS / Reset Button

Power Supply:

• 9V / 0.85A External Power Adapter

Dimensions (W × D × H):

• 6.85 × 5.12 × 2.36 inches (174 × 130 × 60 mm)

Antennas:

• 2 × Internal 4G/3G Antennas
• 2 × Internal Wi-Fi Antennas

---

Wireless Features

Wireless Standards:

• IEEE 802.11b/g/n

Frequency:

• 2.4 GHz

Signal Rate:

• Up to 300 Mbps

Reception Sensitivity:

• 11g 54M: -74 dBm
• 11n HT20: -71 dBm
• 11n HT40: -67 dBm

Transmit Power:

• < 20 dBm (2.4 GHz)

Wireless Functions:

• Enable/Disable Wireless Radio
• Wireless Schedule
• WMM (Wi-Fi Multimedia)
• Wireless Statistics

WAN Failover:

• Supported

Wireless Security:

• 64/128-bit WEP
• WPA/WPA2
• WPA-PSK/WPA2-PSK Encryption

Network Type:

• 4G LTE:
  • FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)
  • TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
• 3G:
  • DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

---

Software Features

Security:

• IPv4 SPI Firewall
• IP & MAC Address Binding

Operating Modes:

• 3G/4G Router Mode
• Wireless Router Mode

WAN Types:

• Dynamic IP
• Static IP
• PPPoE
• PPTP (Dual Access)
• L2TP (Dual Access)

Management:

• Access Control
• Local Management

DHCP:

• DHCP Server
• DHCP Client
• DHCP Client List
• Address Reservation

Port Forwarding:

• ALG
• Virtual Server
• Port Triggering
• UPnP
• DMZ

Dynamic DNS:

• TP-Link
• DynDNS
• NO-IP

Access Control:

• Parental Controls
• Local Management Control
• Host List
• Access Control Rules

Firewall Security:

• DoS Protection
• SPI Firewall
• IP & MAC Address Binding

Protocols:

• IPv4
• IPv6

Guest Network:

• 1 × 2.4 GHz Guest Network

Administration:

• Firmware Upgrade
• Factory Reset
• System Log
• Diagnostic Tools

---

Additional Information

Certifications:

• CE
• RoHS

Package Contents:

• TP-Link TL-MR6400 300Mbps Wireless N 4G LTE Router
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

System Requirements:

• Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1
• macOS, NetWare, UNIX, or Linux
• Internet Explorer 11+, Firefox 12+, Chrome 20+, Safari 4+ or other Java-enabled browsers
• Nano SIM Card

---

Environment

Operating Temperature:

• 0°C to 40°C (32°F to 104°F)

Storage Temperature:

• -40°C to 70°C (-40°F to 158°F)

Operating Humidity:

• 10% – 90% (non-condensing)

Storage Humidity:

• 5% – 90% (non-condensing)



TP-Link TL-MR105 300 Mbps Wireless N 4G LTE Router – Description

The TP-Link TL-MR105 300 Mbps Wireless N 4G LTE Router is a reliable and flexible networking solution designed to provide stable internet connectivity in various environments. By utilizing advanced 4G LTE technology, the router can deliver download speeds of up to 150 Mbps and share the connection with up to 32 Wi-Fi devices simultaneously, making it suitable for homes, small offices, or temporary workspaces.

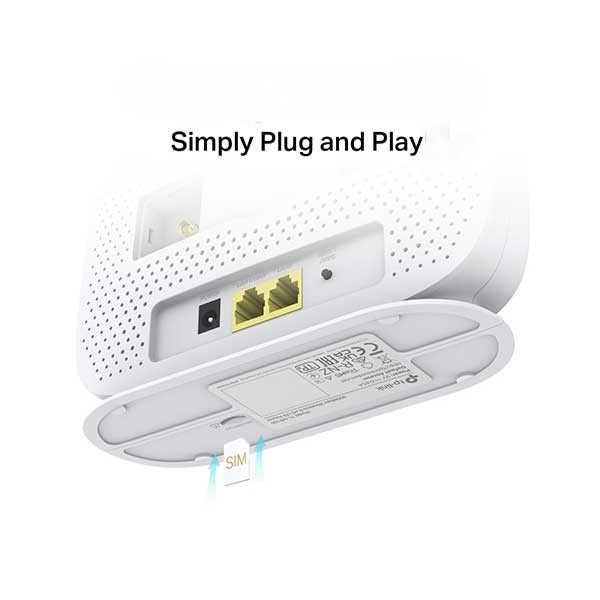

With its plug-and-play setup, getting started is simple. Just insert a compatible SIM card, power on the router, and it will automatically configure the network for optimal performance. Extensive testing ensures compatibility with SIM cards from over 100 countries, allowing users to stay connected almost anywhere.

The TL-MR105 also features a Wi-Fi router mode that allows users to connect an Ethernet cable to the LAN/WAN port and switch to a wired internet source when needed. This provides extra flexibility in situations where a 4G signal is unavailable or when a wired connection is preferred for specific devices.

For enhanced security, the router includes a built-in firewall and advanced encryption protocols to help protect your network from unauthorized access and potential threats. Its compact and modern design fits easily into both home and office environments, while the intuitive web interface makes network setup, monitoring, and management simple.

Combining speed, flexibility, and ease of use, the TP-Link TL-MR105 is an excellent choice for users who need dependable internet connectivity for streaming, online work, gaming, and everyday browsing.
